Xinhong Heat Press

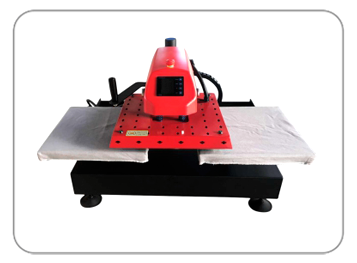

Dual Stations Shuttle Pneumatic Sublimation Heat Press Machine

Model NO.:

FJXHB1-2

Description:

This model is a pneumatic twin station shuttle heat press machine, so if you have any laser transfer paper or other heat transfer materials need higher pressure, this model is your ideal heat press which generates max.150Psi. In addition, this twin station heat press brings greater productivity in the sublimation and save time.

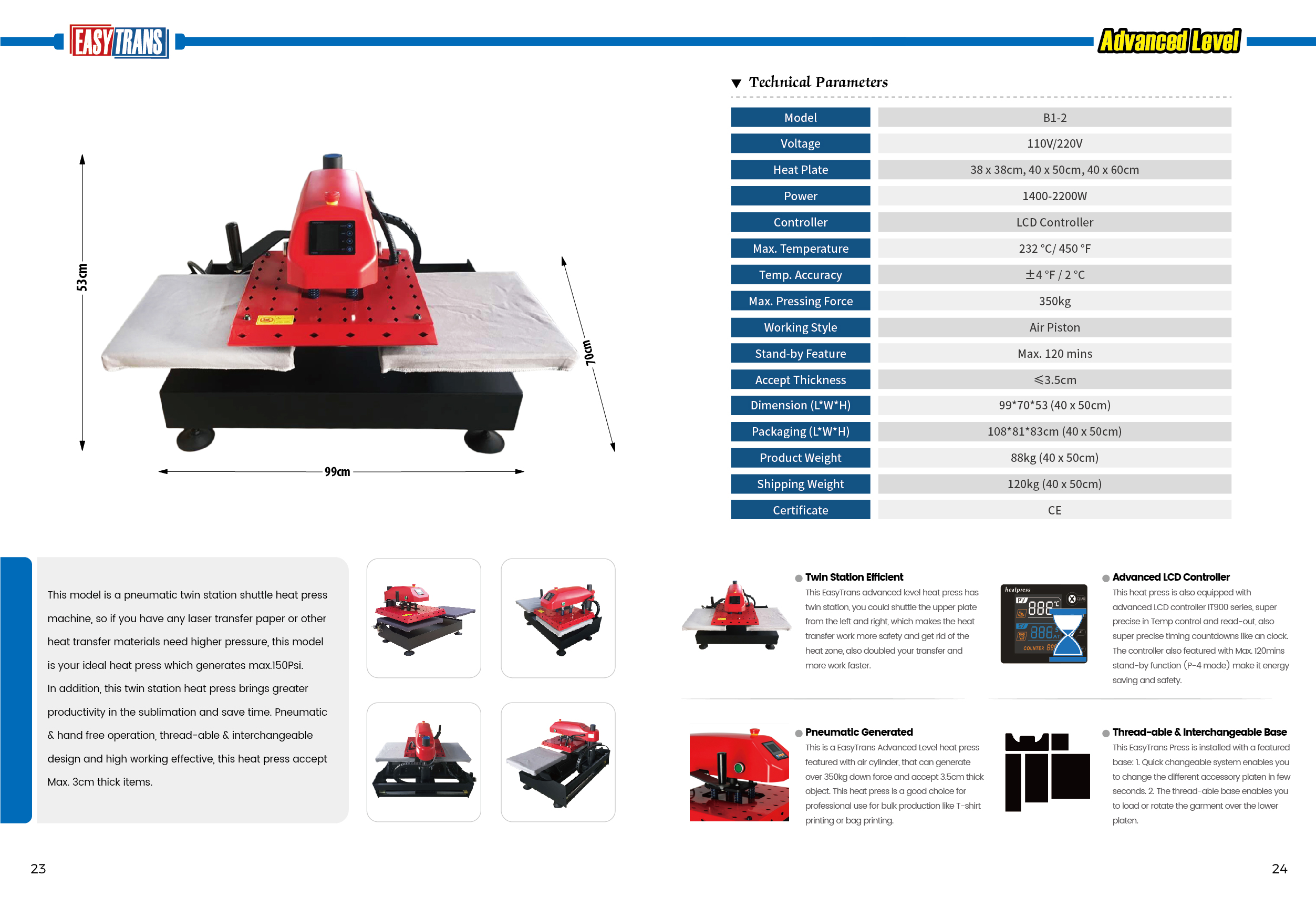

P.S. Please click Download as PDF to save brochure and read more.

Style: Pneumatic dual stations

Features: Auto-open/Interchangeable/Threadable

Platen Size: 38x38/40x50/40x60cm

Dimension: 107x81x83cm(40x50cm)

Certificate: CE （EMC, LVD, RoHS）

Warranty: 12 Months

Contact: WhatsApp/Wechat: 0086 - 150 6088 0319

Dealer Price Instruction

Description

Features:

This EasyTrans advanced level heat press has twin station, you could shuttle the upper plate from the left and right, which makes the heat transfer work more safety and get rid of the heat zone, also doubled your transfer and more work faster.Pneumatic& hand free operation, thread-able & interchangeable design and high working effective, this heat press accept Max. 3cm thick items.

Additional features

Pneumatic Generated

This is a EasyTrans Advanced Level heat press featured with air cylinder, that can generate over 350kg down force and accept 3.5cm thick object. This heat press is a good choice for professional use for bulk production like T-shirt printing or bag printing.

Twin Station Efficient

Just thinking about the effcient working, you will find out this twin station shuttle heat press is absolute an good idea. This twin station heat press enables to double the working and save time.

Threadable Base Design

Would you like easily position the garments? This insertable base is some kind of U type structure, which enable you ti put your clothes in and print evenly, especially when you do not want heat the backside.

Advanced LCD Controller

This heat press is also equipped with advanced LCD controller IT900 series, super precise in Temp control and read-out, also super precise timing countdowns like an clock. The controller also featured with Max. 120mins stand-by function (P-4 mode) make it energy saving and safety.

Optional Platens

There 5pcs optional platens is not standard configuration.So if you need these platens, please cintact us to add in the order, they are 12x12cm, 18x38cm, 12x45cm, 30x35cm, tshirts platen and shoe platen.

Heating Platen

Gravity die casting technology made thicker heating platen, helps to keep heating element stay stable when heat makes it expand and cold makes it contract,also called even pressure and heat distribution guaranteed.

Specifications:

Heat Press Style:Pneumatic
Motion Available: Auto open/Interchangeable
Heat Platen Size: 40x50cm
Voltage: 110V or 220V
Power: 1400-2200W

Controller: LCD Controller Panel
Max. Temperature: 450°F/232°C
Timer Range: 999 Sec.
Machine Dimensions: 70 x 99 x 53
Machine Weight: 88kg
Shipping Dimensions: 108 x 81 x 83cm
Shipping Weight: 120kg

CE/RoHS compliant
1 Year entire warranty
Lifetime technical support
