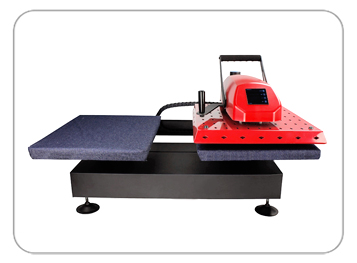

Dual Stations Shuttle Manual Heat Transfer Press Machine

  • Model NO.:

    HP3805-2

  • Description:
  • Just thinking about the efficient working, you will find out this twin station shuttle heat press is absolutely an good idea. This twin station heat press brings greater productivity in the sublimation or heat transfer processing and save time. LCD smart computer gauge, Thread-able & Interchangeable, working effective and accept Max. 1.5cm thick items.

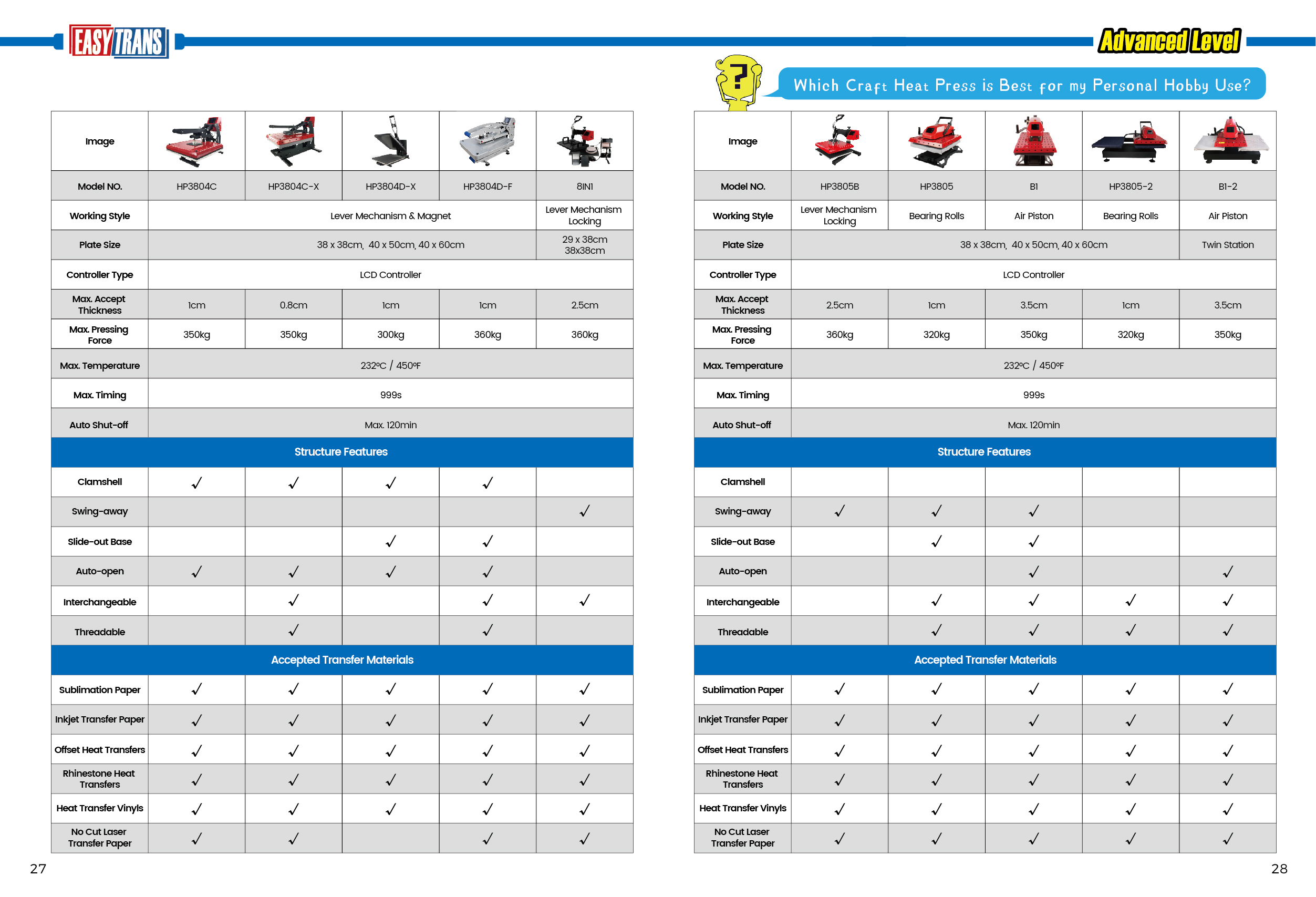

    P.S. Please click Download as PDF to save brochure and read more.


  • Style: Manual double stations
  • Features: Interchangeable/Threadable
  • Platen Size: 38 x 38cm, 40 x 50cm, 40 x 60cm
  • Dimension: 70*99*53 (40 x 50cm)
  • Certificate: CE (EMC, LVD, RoHS)
  • Warranty: 12 Months
  • Contact: WhatsApp/Wechat: 0086 - 150 6088 0319
  • Description

    Video

    EasyTran-heat-press-family-21

    Features:

    This EasyTrans advanced level heat press has twin station, you could shuttle the upper plate from the left and right, which makes the heat transfer work more safety and get rid of the heat zone, also doubled your transfer and more work faster. Manual& hand free operation, thread-able & interchangeable design and high working effective, this heat press accept Max. 3cm thick items.

    Additional features

    dual station heat press

    Twin Station Efficient

    Just thinking about the effcient working, you will find out this twin station shuttle heat press is absolute an good idea. This twin station heat press enables to double the working and save time.

    dual station heat press

    Double Productor Cover

    This heat press has a double protector cover which looks better, also helps to ensure heat insulation and more safety.

    Advanced LCD Controller

    LCD Touch Controller

    Just thinking about the effcient working, you will find out this twin station shuttle heat press is absolute an good idea. This twin station heat press enables to double the working and save time.

    heat press

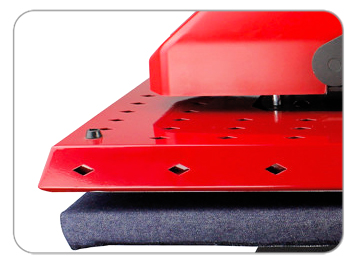

    Heating Platen

    Gravity die casting technology made thicker heating platen, helps to keep heating element stay stable when heat makes it expand and cold makes it contract,also called even pressure and heat distribution guaranteed.

    Changeable Platen

    Optional Platens

    There 5pcs optional platens is not standard configuration.So if you need these platens, please cintact us to add in the order, they are 12x12cm, 18x38cm, 12x45cm, 30x35cm, tshirts platen and shoe platen.

    heat press

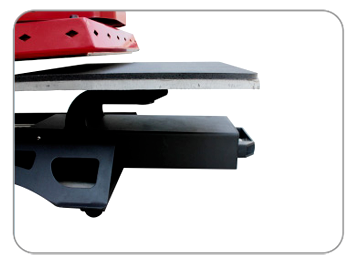

    Threadable Base Design

    Would you like easily position the garments? This insertable base is some kind of U type structure, which enable you ti put your clothes in and print evenly, especially when you do not want heat the backside.

    Specifications:

    Heat Press Style: Manual
    Motion Available: Dual station/Interchangeable
    Heat Platen Size: 38 x 38cm, 40 x 50cm, 40 x 60cm
    Voltage: 110V or 220V
    Power: 1400-2200W

    Controller: LCD Touch Panel
    Max. Temperature: 450°F/232°C
    Timer Range: 999 Sec.
    Machine Dimensions: /
    Machine Weight: 93kg (40x50cm)
    Shipping Dimensions: 108 x 80 x 68cm (40x50cm)
    Shipping Weight: 137kg (40x50cm)

    CE/RoHS compliant
    1 Year entire warranty
    Lifetime technical support
