【DIGITAL CONTROL & DISPLAY】- It is certified with UL authorization.The precise digital controller is embedded with LCD displays, easy to operate & control. The screen touch button boasts a comfortable touch feeling. Press (+/-) to switch ℃ and °F at will.
【DUAL-TUBE HEATING】- Unlike ordinary single tube heating, our heat press 15x15 adopts the latest double-tube heating technology. That makes the temperature difference is only about 5 ℃ between the center and the edge. But the old-fashioned heating tube is more than 10 ℃.
【8-IN-1 VERSATILE KIT】- With a 15"x 15" (38 x 38 cm) large heat platen, the 8 in 1 heat press uses Teflon-coated platen, non-stick & stable. Suitable for applying letters, numbers, and patterns onto caps, T-shirts, mugs, plates, etc.
【360° SWING AWAY DESIGN】- The swing-away arm makes the pressure be applied directly and evenly on the sublimation machine, improving the transfer quality. Meanwhile, it allows the heating element to move to the side, reducing the chance of accidental contact.
【USER-FRIENDLY DETAILS】-The upgraded handles are more labor-saving & stable. Special mechanical design interchangeable system be replaced with different accessories, such as mug press, cap press, easy and very simple to assemble.

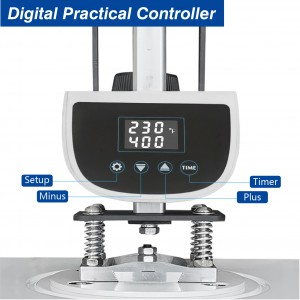

LCD Touch Display
Feature lcd screen touch display and capacitive button, easy to operate with comfortable touch feeling. Up to 5 function enable you to obtain temperature, time, C/F, stand-by and counter features.

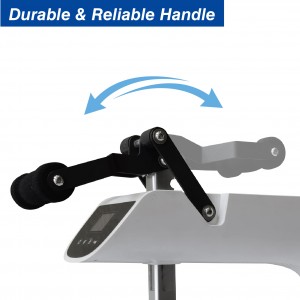

Durable Mechanical Handle
The well-upgraded handle is innovated design, is more effort-saving and smooth under the same pressure, making it more comfortable to hold, pressure and lift.

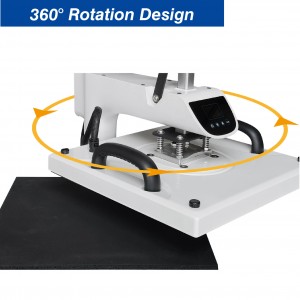

360° Rotation Design
The swing-away arm makes the pressure be applied directly and evenly on the sublimation machine, improving the transfer quality. Meanwhile, it allows the heating element to move to the sid to leave a heat-free space.

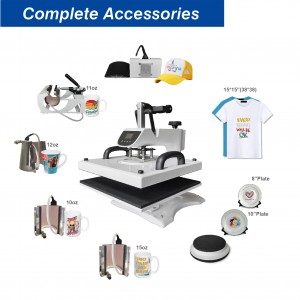

Complete Accessory
This shirt printing machine with varieties of fittings, including one platen press, one hat/cap press, one mug press, and two plate presses, allowing patterns to transfer onto T-shirts, caps, mugs, plates, and other flat surfaced items.

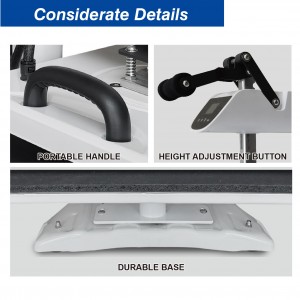

Considerate Details
A portable handle can facilitate the movement. The flexible button is easy for adjusting the height. Based on the solid base, the heat press requires stable support to maintain smooth running.

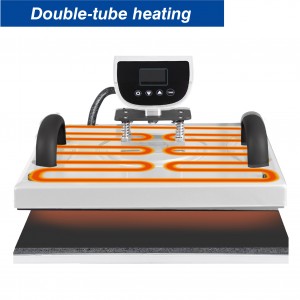

Double Tube Heating
The double-tube heating design ensures the heating more uniform and the better transfer quality. Compared with single tube heating, the temperature difference is only about 5 ℃ between the center and the edge.

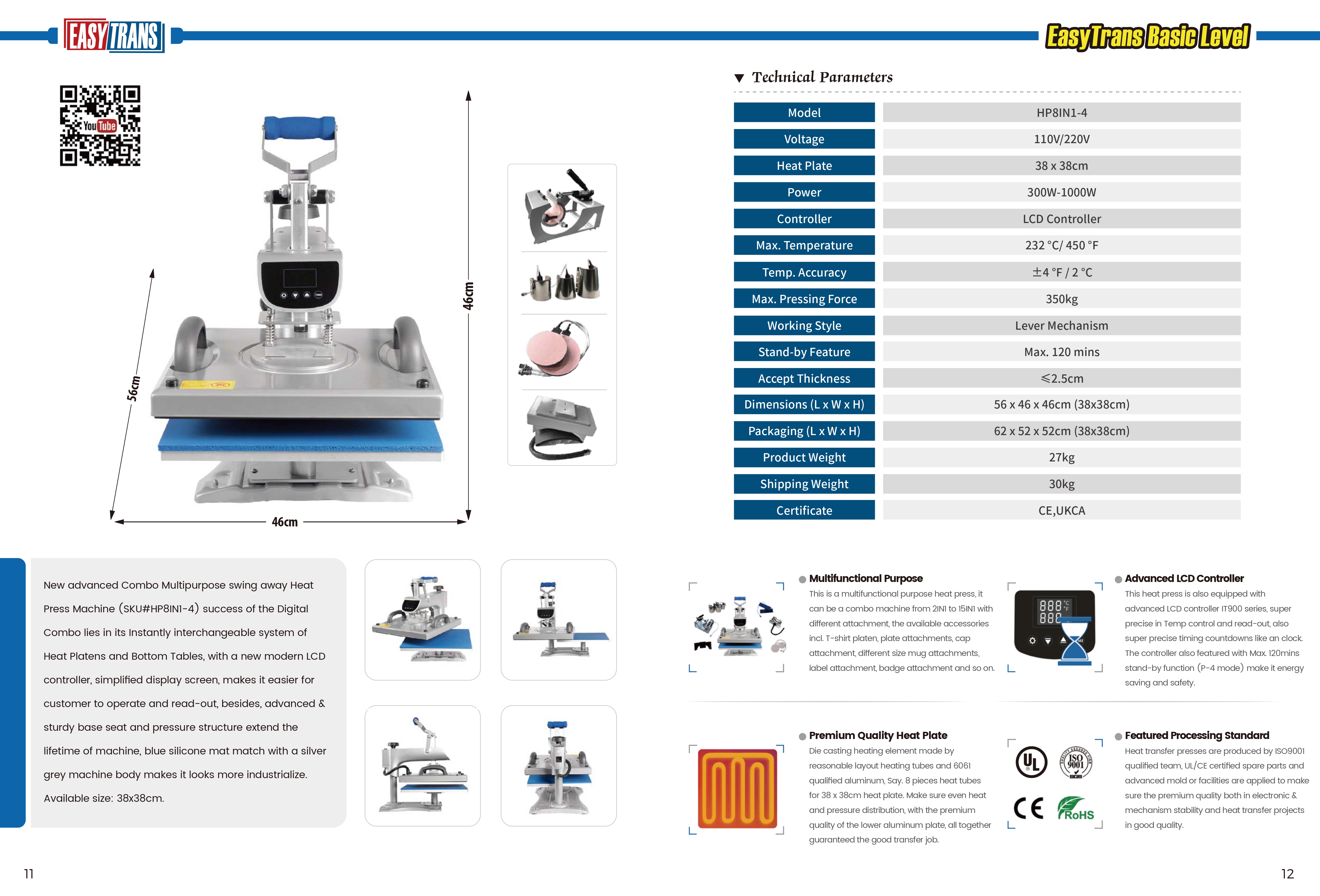

Technical Parameter
Model #: 8IN1
Voltage: 110V or 220V
Power: 300 - 1000W
Controller: LCD Controller
Max. Temperature: 450°F/232°C
Timer Range: 999 Sec.

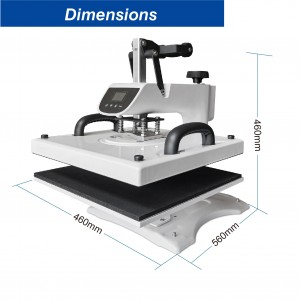

Machine Dimensions:56 x 46 x 46cm
Machine Weight: 38kg
Shipping Dimensions: 62 x 51x 50cm
Shipping Weight: 41kg
Package Content
1 x Heat Press: 38 x 38cm
1 x Silicon Mat: 38 x 38cm
1 x Hat/Cap Press: 15 x 8cm(curved)
1 x Mug Press #1: 10oz
1 x Mug Press #2: 11oz
1 x Mug Press #3: 12oz
1 x Mug Press #4: 15oz
1 x Plate Press Kit: Φ12cm + Φ15cm
1 x User Manual
1 x Power Cord
