40x60cm large platen double heat press machine pneumatic for tshirt heat transfer 16×24

  • Model NO.:

    B2-3

  • Description:

    • Upgraded Model with pneumatic type pressure setting and Manual/Auto working mode switch function, the size of 40x60cm Pneumatic Double Station Heat Press (SKU#B2-3) offers a modern LCD controller, simplified display screen, makes it easier for customer to operate and read-out, besides, advanced & sturdy base seat and pressure structure extend the lifetime of machine, with the enlarged format working plates, it is a good choice for clothing customization manufacturer.

    P.S. Please click Download as PDF to save brochure and read more.


  • Style: Dual Plates Pneumatic Printing Machine
  • Features: Auto-open
  • Platen Size: 40 x 60cm
  • Dimension: 95x82x55cm
  • Certificate: CE （EMC, LVD, RoHS）
  • Warranty: 12 Months
  • Contact: WhatsApp/Wechat: 0086 - 150 6088 0319
    • Instruction

    Description

    B2-3
    B2-3 (1)

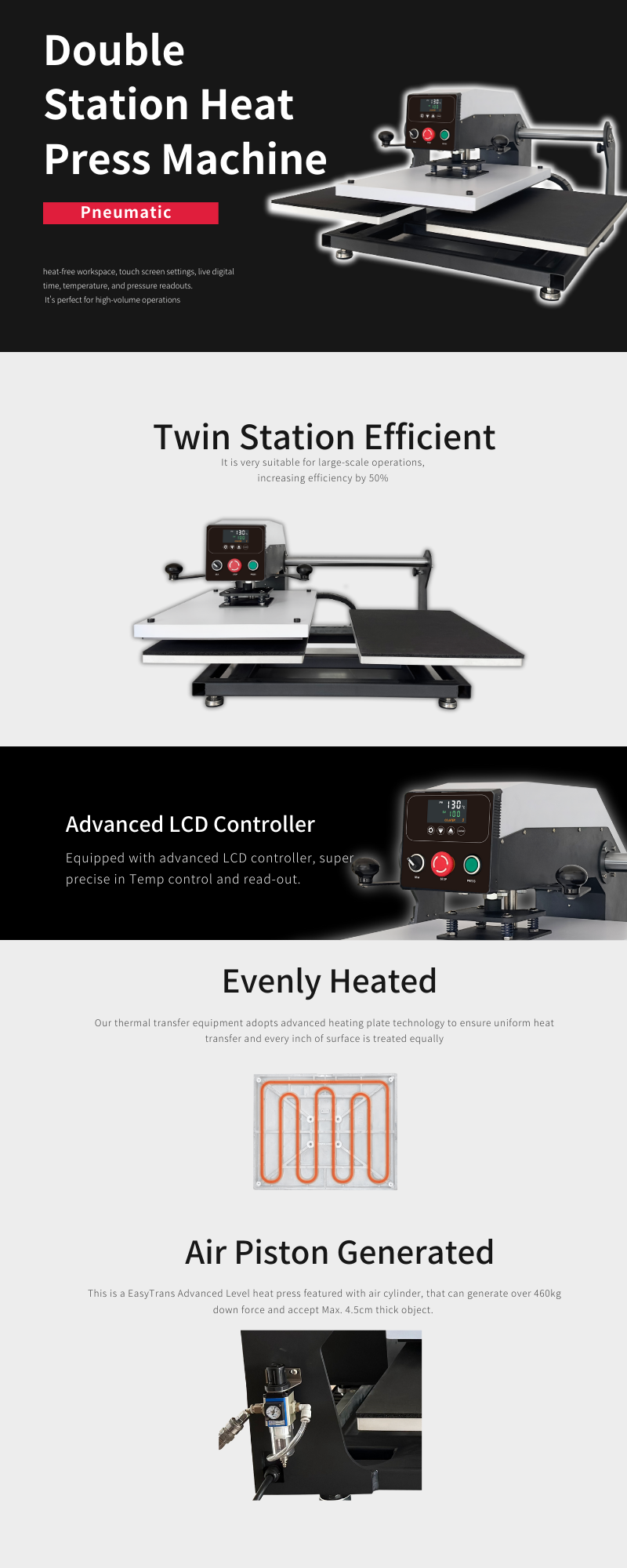

    This is a EasyTrans Advanced Level heat press featured with air cylinder, that can generate over 460kg down force and accept Max. 4.5cm thick object. This heat press is a good choice for any professional use for bulk production like T-shirt or shopping bag printing process.

    Features:

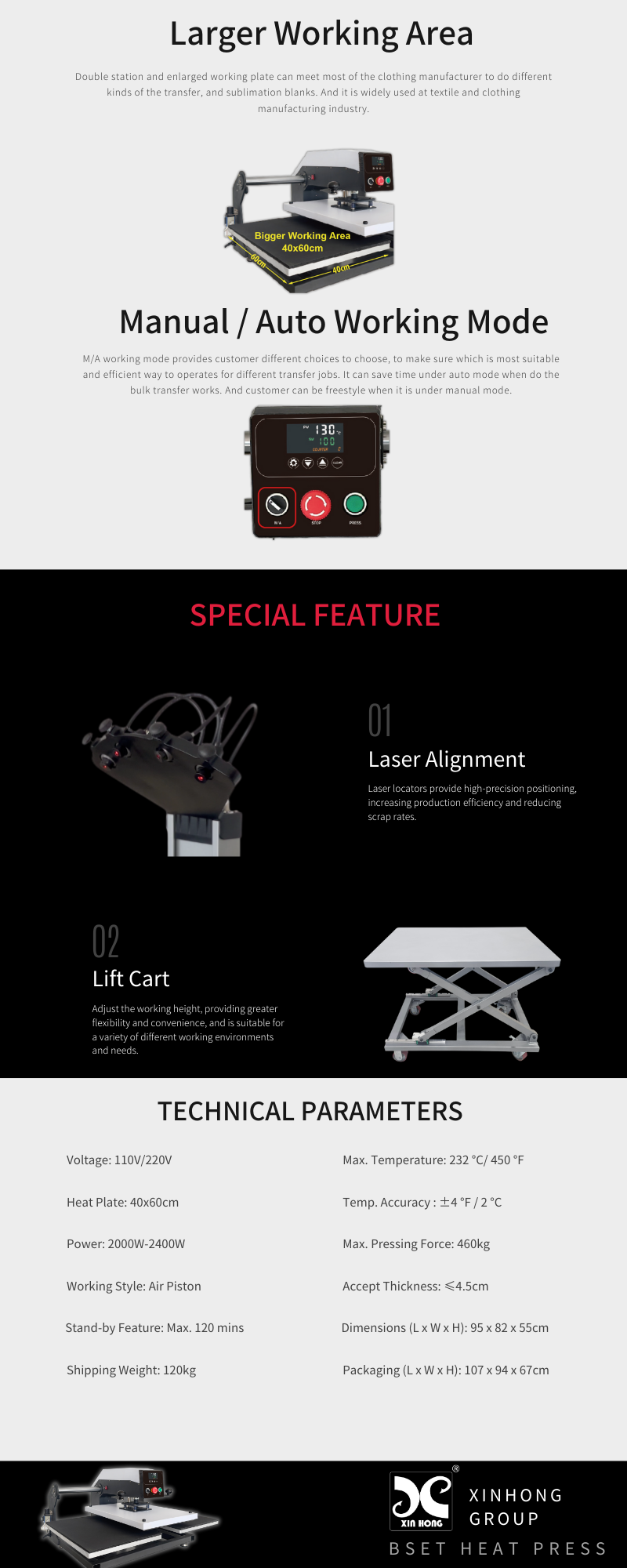

    Upgraded Model with pneumatic type pressure setting and Manual/Auto working mode switch function, the size of 40x60cm Pneumatic Double Station Heat Press (SKU#B2-3) offers a modern LCD controller, simplified display screen, makes it easier for customer to operate and read-out, besides, advanced & sturdy base seat and pressure structure extend the lifetime of machine, with the enlarged format working plates, it is a good choice for clothing customization manufacturer.

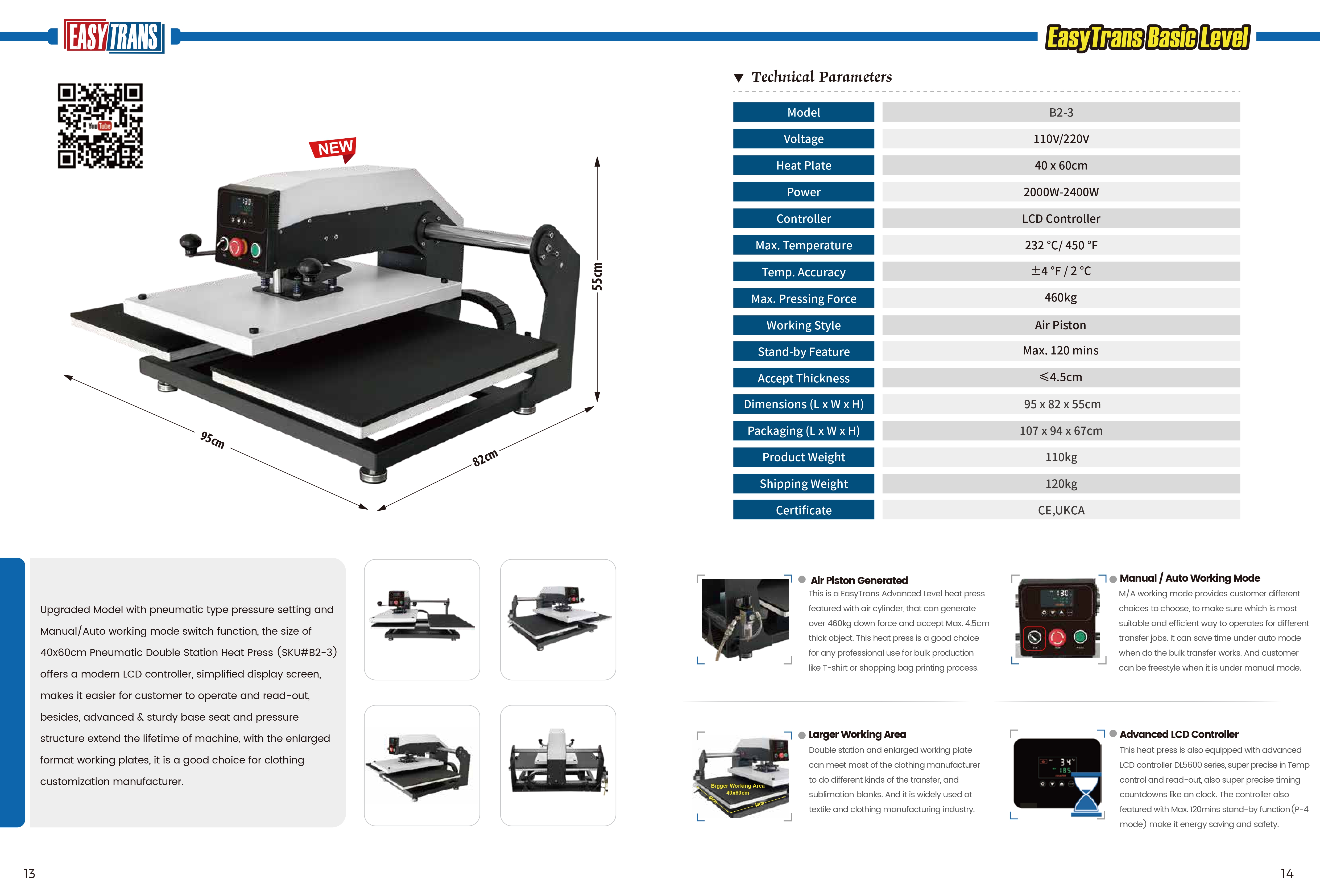

    Specifications:

    Heat Press Style:Pneumatic
    Motion Available: Auto open
    Heat Platen Size: 40x60cm
    Voltage: 110V or 220V
    Power: 2000-2400W

    Controller: Screen-touch LCD Panel
    Max. Temperature: 450°F/232°C
    Machine Dimensions: 95 x 82 x 55cm
    Machine Weight: 110kg
    Shipping Dimensions: 107x 94x 67cm
    Shipping Weight: 120kg

    CE/RoHS compliant
    1 Year entire warranty
    Lifetime technical support
