Xinhong Heat Press

40x50cm Prime Swing-away Electric Heat Press Machine With Movable Caddie

Model NO.:

B2-NC PRO

Description:

With superior quality and high performance, this heat press brings you greater productivity in the sublimation. Electric design is with lower noise compared to heat press machine with air compressor. It is suitable for any sublimation or transferable product no matter which HTV or transfer paper incl. Trim-free laser paper. 5pcs optional quick-change lower platens, no tools required.

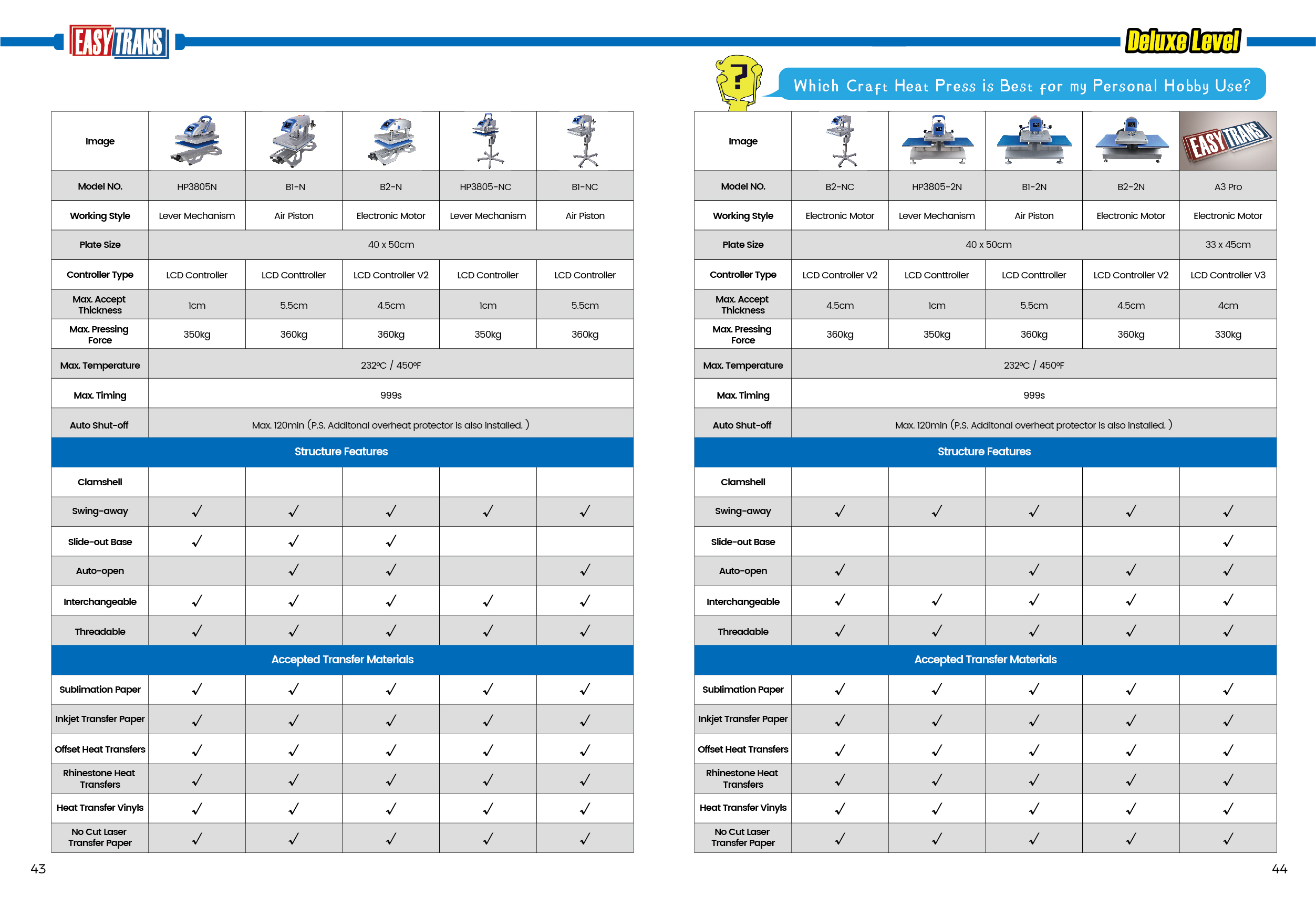

P.S. Please click Download as PDF to save brochure and read more.

Style: Electric Heat Press

Features: Swing-away/Auto-open/Interchangeable/Threadable

Platen Size: 40 x 50cm

Dimension: 79x56x52cm

Certificate: CE （EMC, LVD, RoHS）

Warranty: 12 Months

Contact: WhatsApp/Wechat: 0086 - 150 6088 0319

Dealer Price Instruction

Description

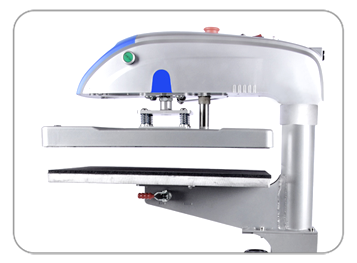

EasyTrans Deluxe Level heat press featured with the swing-arm and just swing-away the heating plate and leave sufficient space for loading the items. Besides, it’s operated by featured lever mechanism locking system and generates Max.350kg, refers to easy applicable for any no cut laser transfer paper. Also, the feature mechanism is very easy to lift up the handle during the operation.

Features:
Functioning as either a swinger heat press with stand, the 40 x 50cm EasyTrans Electric Pro Heat Press (SKU#: B2-NC) offers a heat-free workspace, touch screen settings, live digital time, temperature readouts. Plus, with lower platen thread-ability, you can position a garment once, rotate and decorate any area.

Additional features

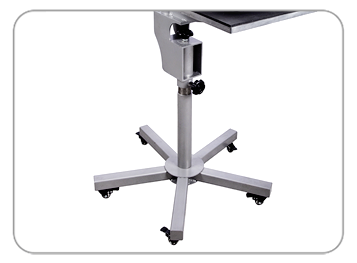

Featured Heat Press Caddie

This EasyTrans Deluxe heat press sits on a movable caddie directly, the fives legs style make sure heat press very stable and no worry for tripping over during the swing-away. The two hand-wheels on the caddie stand, one for Max. 10cm height adjustment, another one for left/ right rotation and fixed permanently.

Thread-able & Interchangeable Base

This EasyTrans Press is installed with a featured base: 1. Quick changeable system enables you to change the different accessory platen in few seconds. 2. The thread-able base enables you to load or rotate the garment over the lower platen.

Advanced LCD Controller

This heat press is also equipped with advanced LCD controller IT900 series, super precise in Temp control and read-out, also super precise timing countdowns like an clock. The controller also featured with Max. 120mins stand-by function (P-4 mode) make it energy saving and safety.

Triple Thermal Production

Two thermal protection decices connect separately with live wire and Neutral Wire, the third protection is heatong plate with temperature protector which prevent abnormal temperature rise.

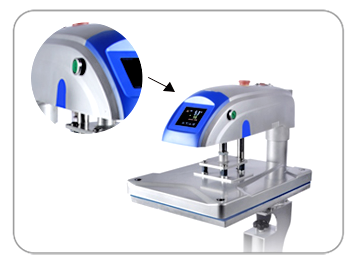

Pop-out Controller

A pop-up controller makes instrument replacement easier.

Protective Cap

Protective Cap is safer and anti-scalding.

Four Support Springs

Ensure balanced pressure ditribution.

16X20 Heat Platen

There is enough size to print all kinds of products.

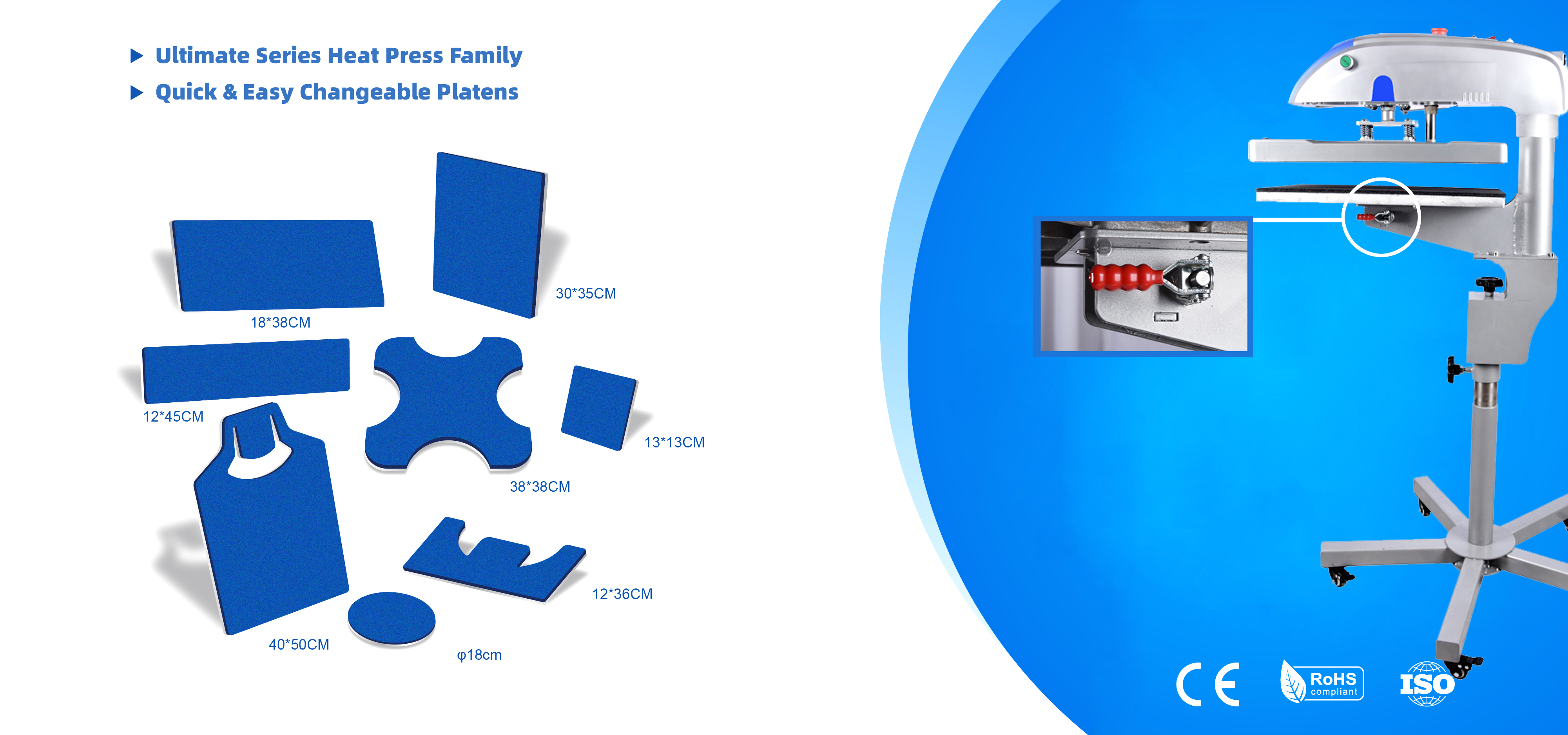

Changeable Platen

For Label, Shoes, Stocking, Sleeves, Baby Clothes

User Safe Two-hand Operation

Accepts items up to 1.97" Thick

Maximum Swing Angle 145 Degree

Specifications:

Heat Press Style: Electric
Motion Available: Swing-away/ with stand
Heat Platen Size: 40x50cm
Voltage: 110V or 220V
Power: 1800-2200W

Controller: Screen-touch LCD Panel
Max. Temperature: 450°F/232°C
Timer Range: 999 Sec.
Machine Dimensions: 79 x 56 x 52cm
Machine Weight: 42kg+22.5kg
Shipping Dimensions: 92 x 52.5 x 60cm
Shipping Weight: 57kg+40kg

CE/RoHS compliant
1 Year entire warranty
Lifetime technical support
