Xinhong Heat Press

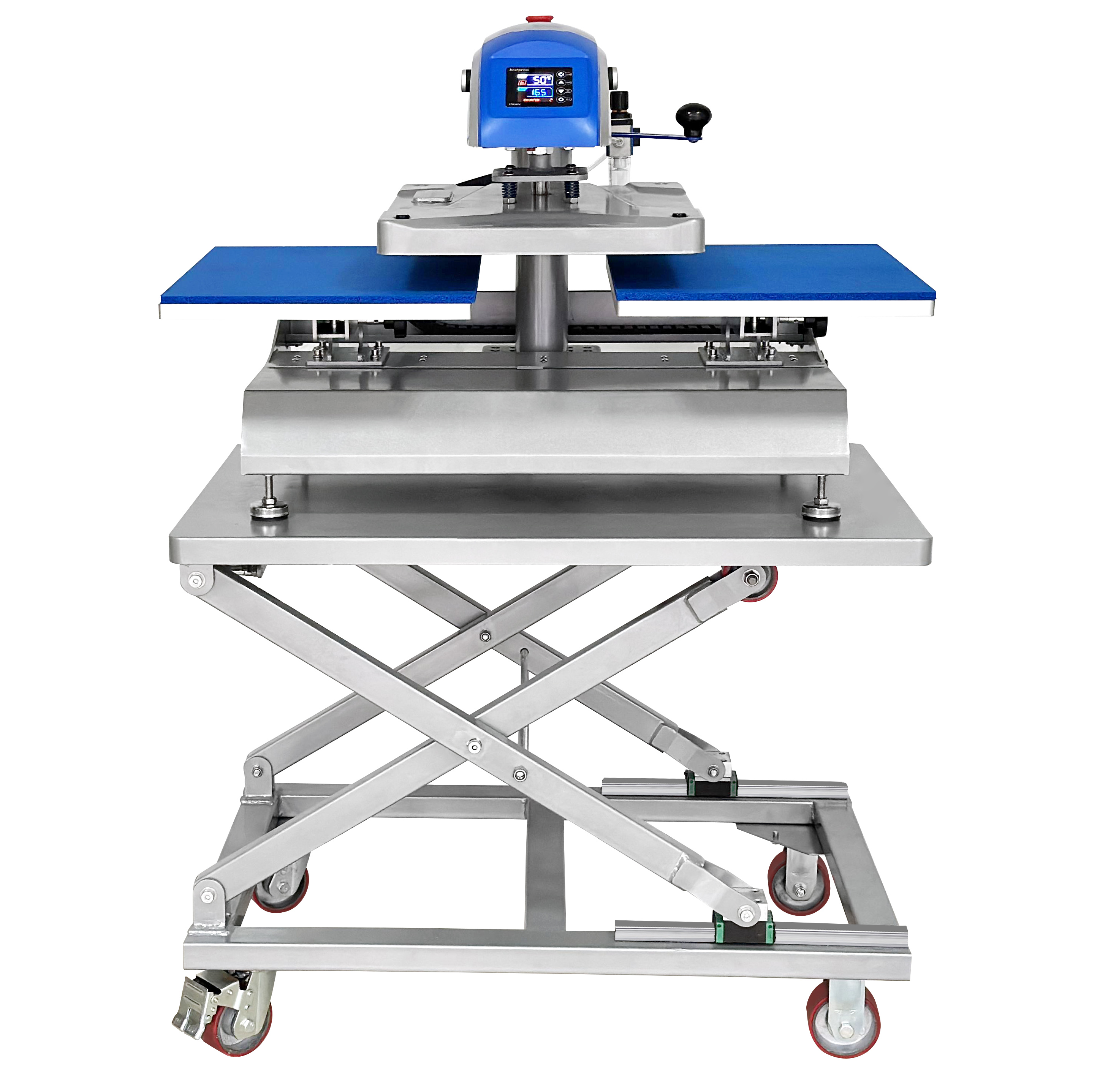

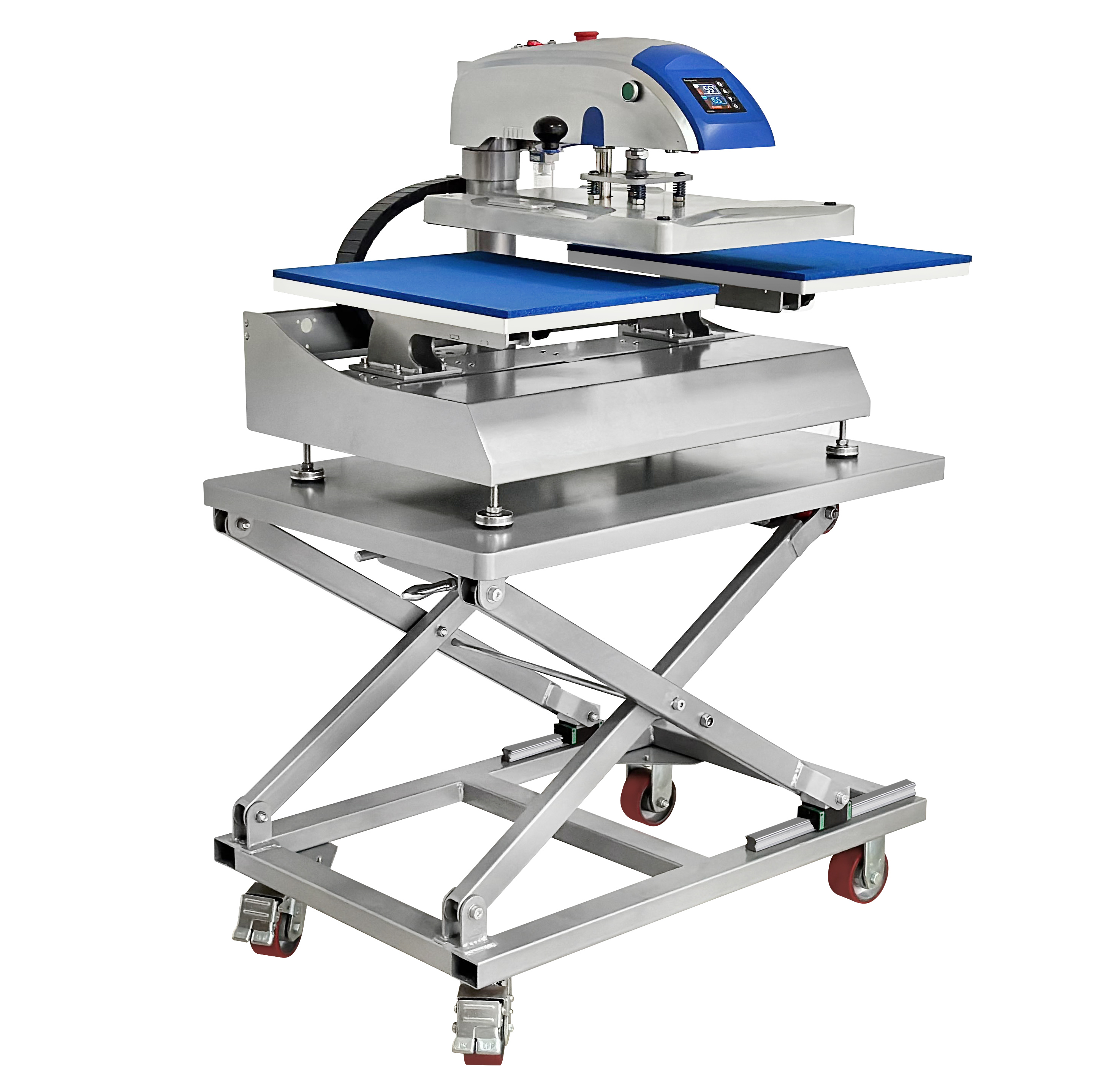

40x50cm Prime Dual Plates Shuttle Pneumatic Heat Transfer Printing Machine

Model NO.:

B1-2N

Description:

With two heat printing stations, this Air fusion heat press increases efficiency by allowing threading and layout on one station while the other is being pressed. It’s perfect for high-volume operations and for DTG printing – set one station for per-treatment, the other for post-curing. Requires air compressor (not included) with 5 gallon.

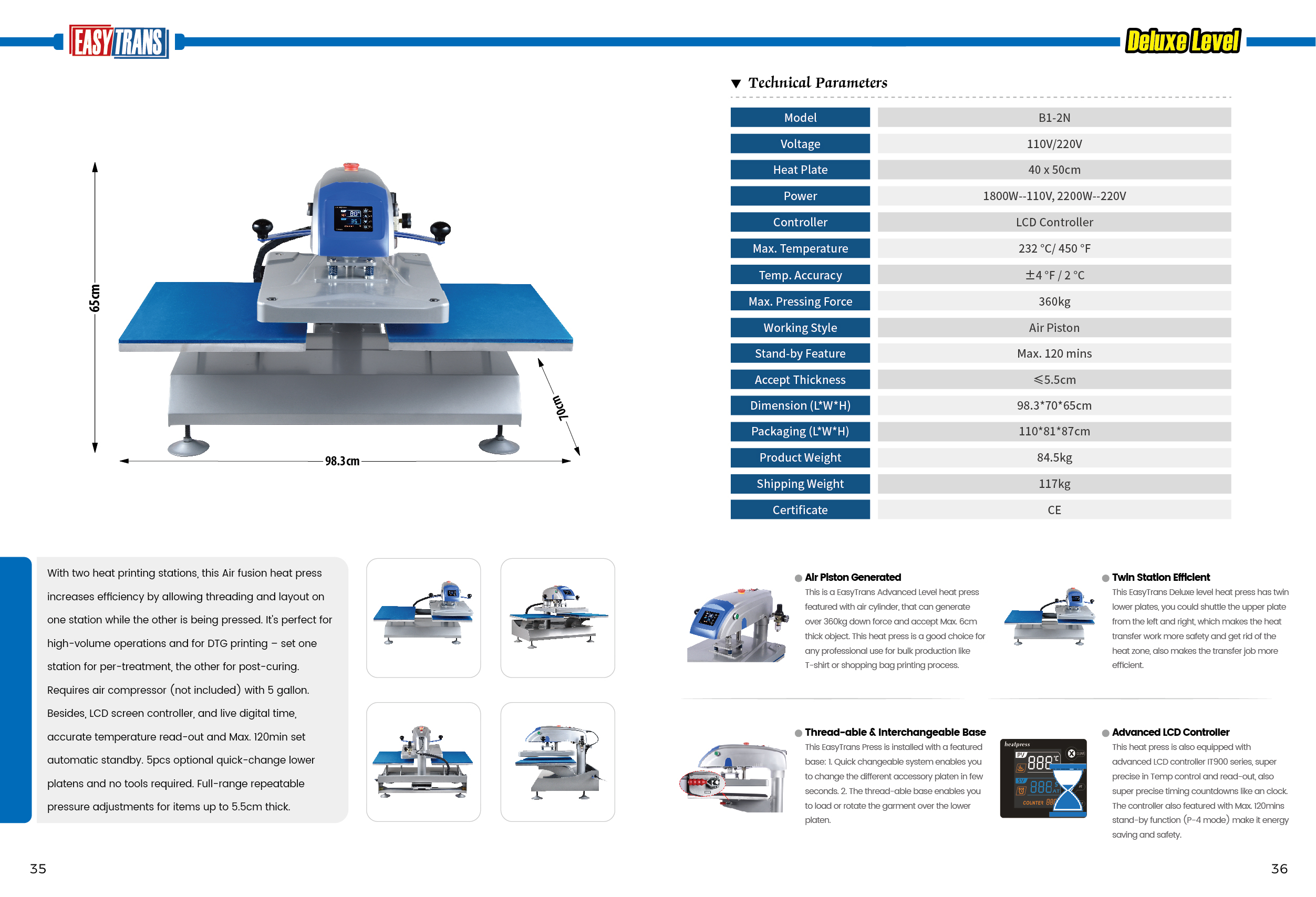

P.S. Please click Download as PDF to save brochure and read more.

Style: Dual Plates Pneumatic Printing Machine

Features: Swing-away/Auto-open/Interchangeable/Threadable

Platen Size: 40 x 50cm

Dimension: 98.3x70x65cm

Certificate: CE （EMC, LVD, RoHS）

Warranty: 12 Months

Contact: WhatsApp/Wechat: 0086 - 150 6088 0319

Dealer Price Instruction

Description

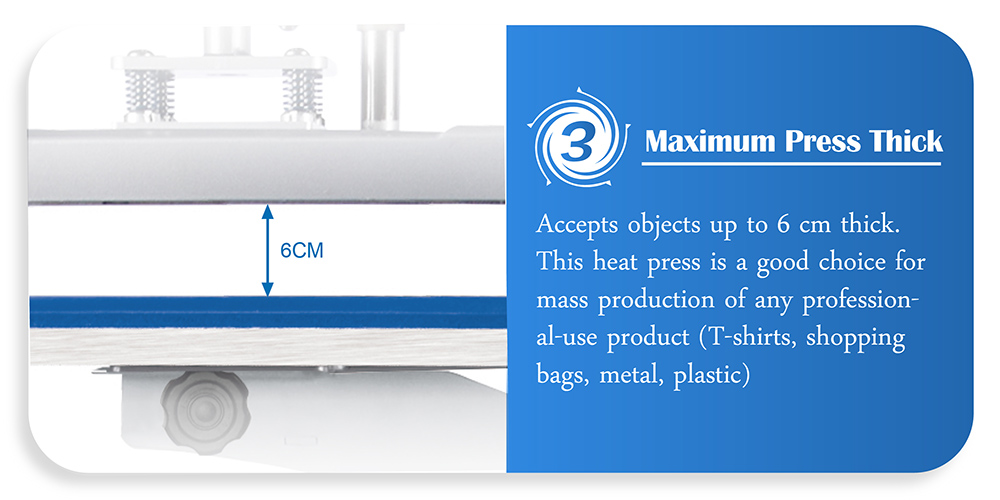

This is a EasyTrans Advanced Level heat press featured with air cylinder, that can generate over 360kg down force and accept Max. 6cm thick object. This heat press is a good choice for any professional use for bulk production like T-shirt or shopping bag printing process.

Features:

This EasyTrans Deluxe level heat press has twin lower plates, you could shuttle the upper plate from the left and right, which makes the heat transfer work more safety and get rid of the heat zone, also makes the transfer job more efficient.

Additional features

Triple Thermal Production

Two thermal protection decices connect separately with live wire and Neutral Wire, the third protection is heatong plate with temperature protector which prevent abnormal temperature rise.

Thread-able & Interchangeable Base

This EasyTrans Press is installed with a featured base: 1. Quick changeable system enables you to change the different accessory platen in few seconds. 2. The thread-able base enables you to load or rotate the garment over the lower platen.

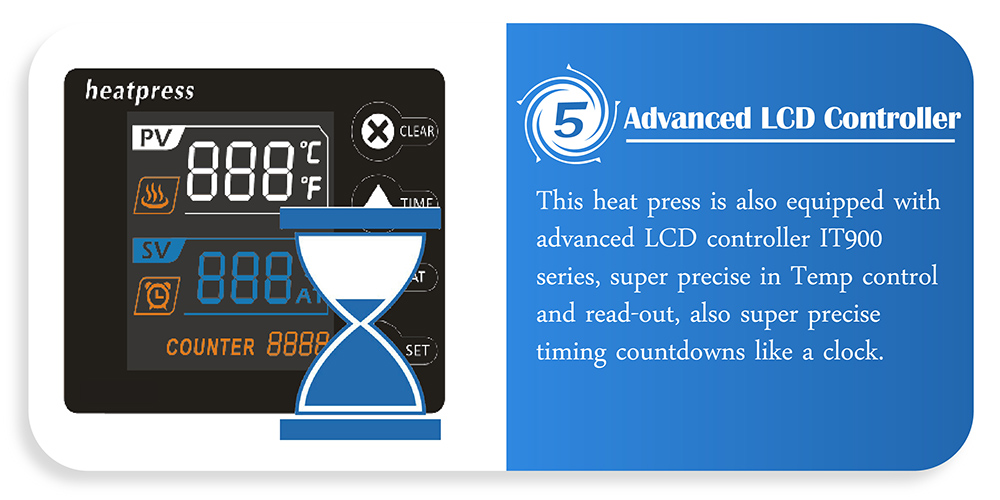

Advanced LCD Controller

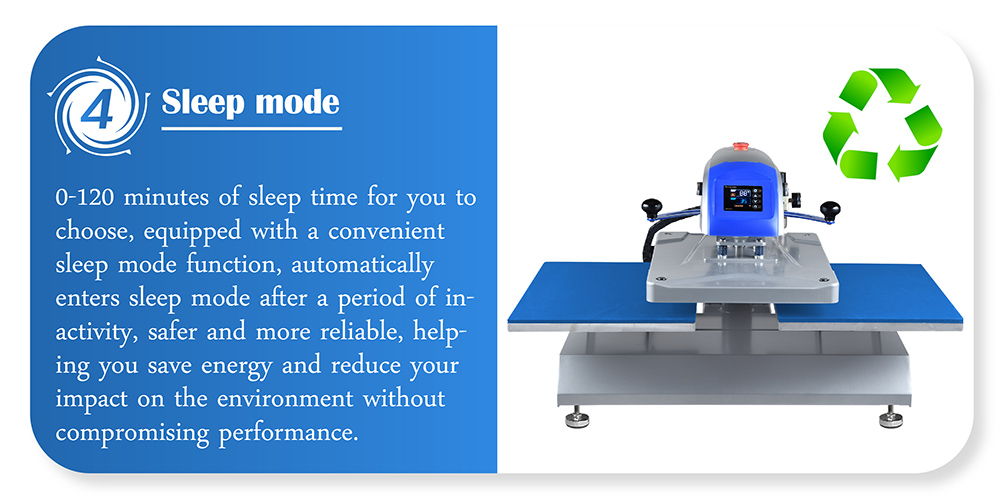

This heat press is also equipped with advanced LCD controller IT900 series, super precise in Temp control and read-out, also super precise timing countdowns like an clock. The controller also featured with Max. 120mins stand-by function (P-4 mode) make it energy saving and safety.

Four Support Springs

Ensure balanced pressure ditribution

Protective Cap

Protective Cap is safer and anti-scalding.

Pop-out Controller

A pop-up controller makes instrument replacement easier.

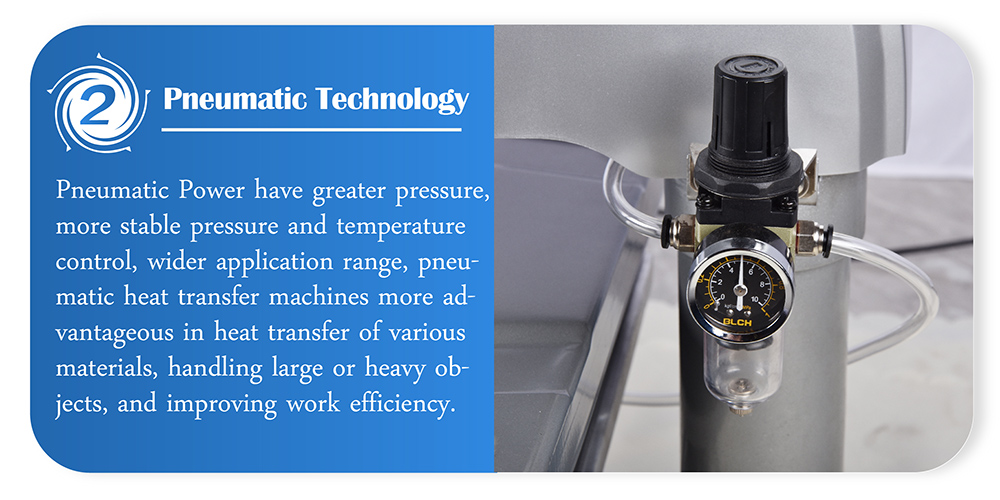

Two Muffler Throttle Valve

Two muffler throttle valve to adjust speed of heat platen up and down.

User Safe Two-hand Operation

16X20 Heat Platen

There is enough size to print all kinds of products.

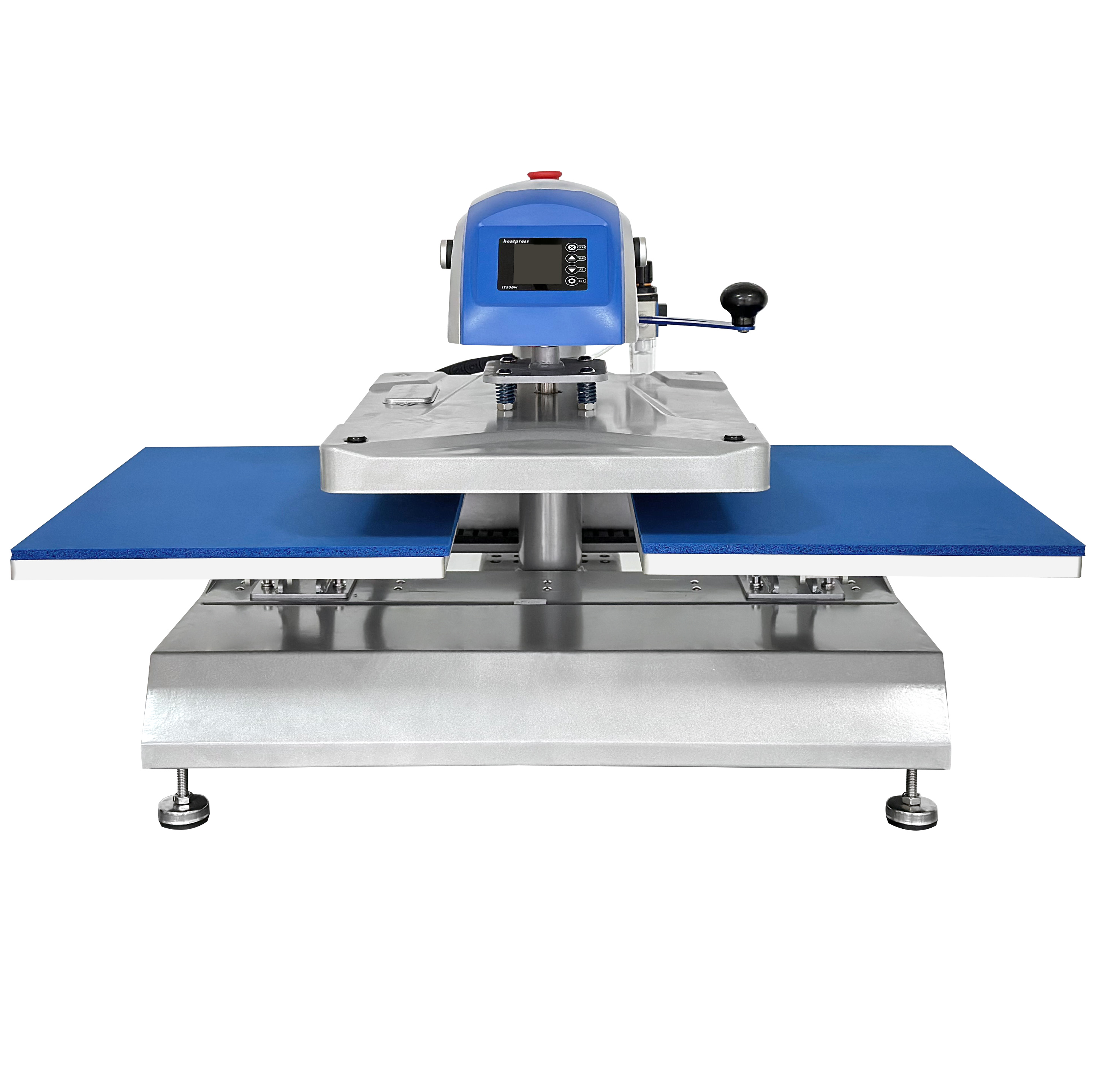

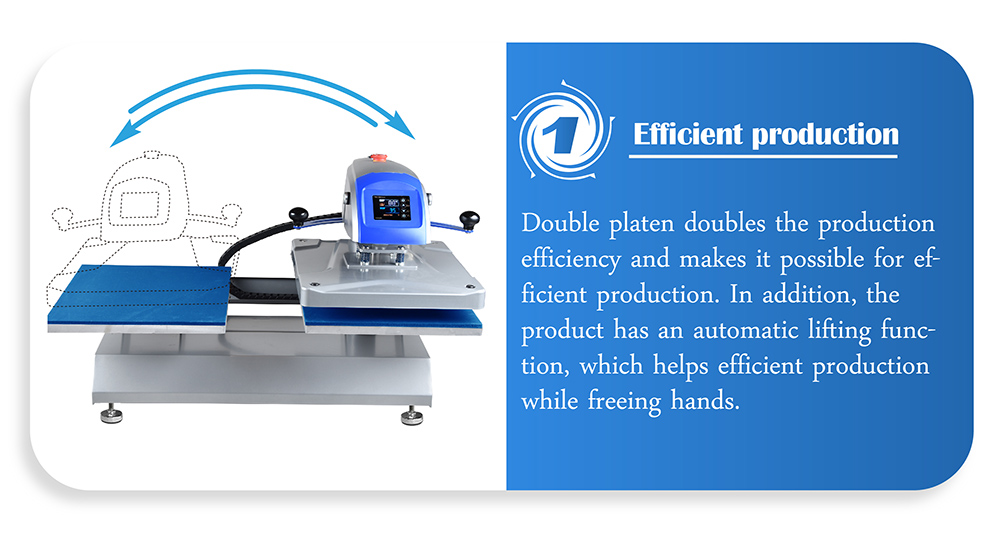

Double Station

The pneumatic dual station heat press transitions from platen to platen, allowing you to thread and remove garments quickly and easily.

Changeable Platen

For Label, Shoes, Stocking, Sleeves, Baby Clothes

double station heat press machine b1-2n 2

Cylinder

Utilizing larger cylinder (80*80) to produce forces up to 700kg (1500lbs)

Specifications:

Heat Press Style:Pneumatic
Motion Available: Swing-away/ Auto open
Heat Platen Size: 40x50cm
Voltage: 110V or 220V
Power: 1800-2200W

Controller: Screen-touch LCD Panel
Max. Temperature: 450°F/232°C
Timer Range: 999 Sec.

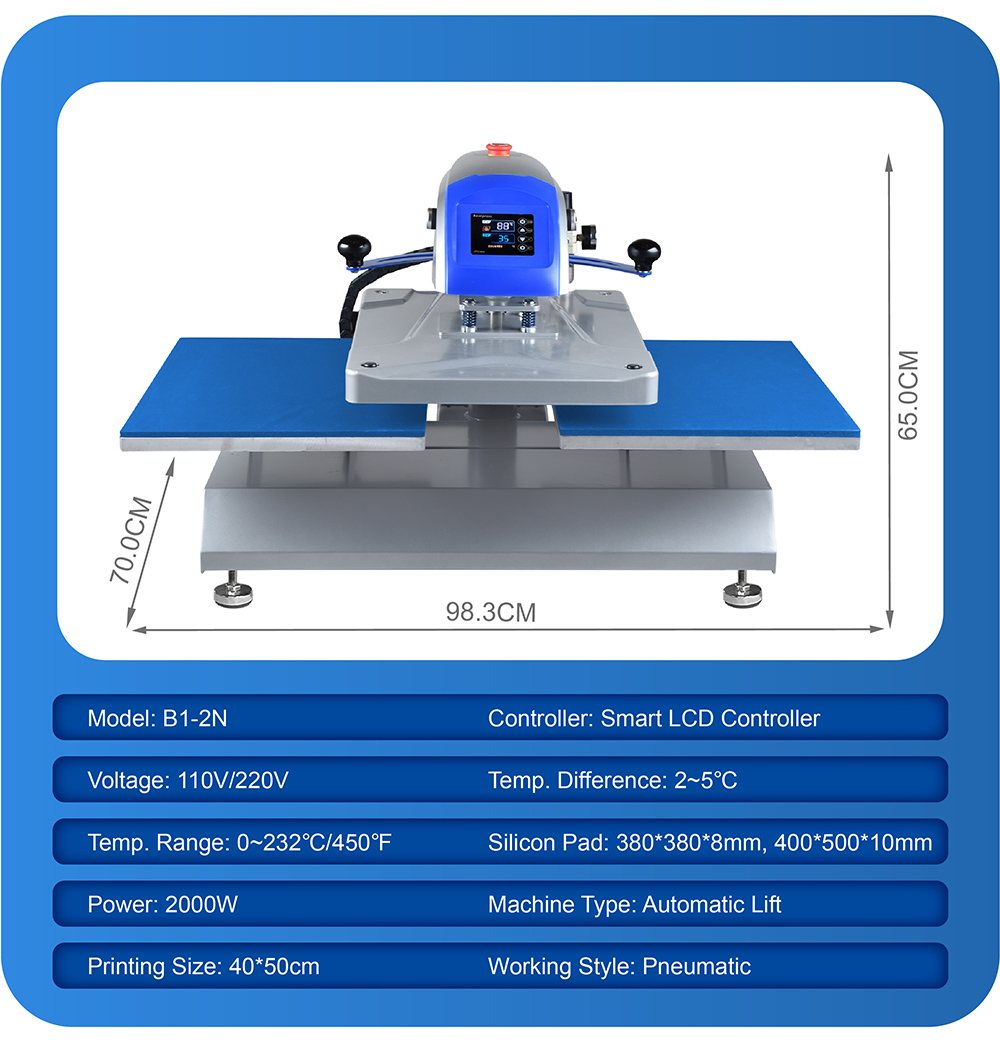

Machine Dimensions: 98.3 x 70 x 65cm
Machine Weight: 84.5kg
Shipping Dimensions: 110 x 81 x 87cm
Shipping Weight: 117kg

CE/RoHS compliant
1 Year entire warranty
Lifetime technical support
