105x75cm Pneumatic Sublimation Heat Transfer Printing Machine

  • Model NO.:


  • Description:
  • The heat press is an air-operated large format heat transfer press with 75 x 105cm and 80 x 100cm size. The B5 provides production-oriented pressing with push button operation, fully digital temperature & time control, and solid steel welded frame design with an affordable automatic large format price.

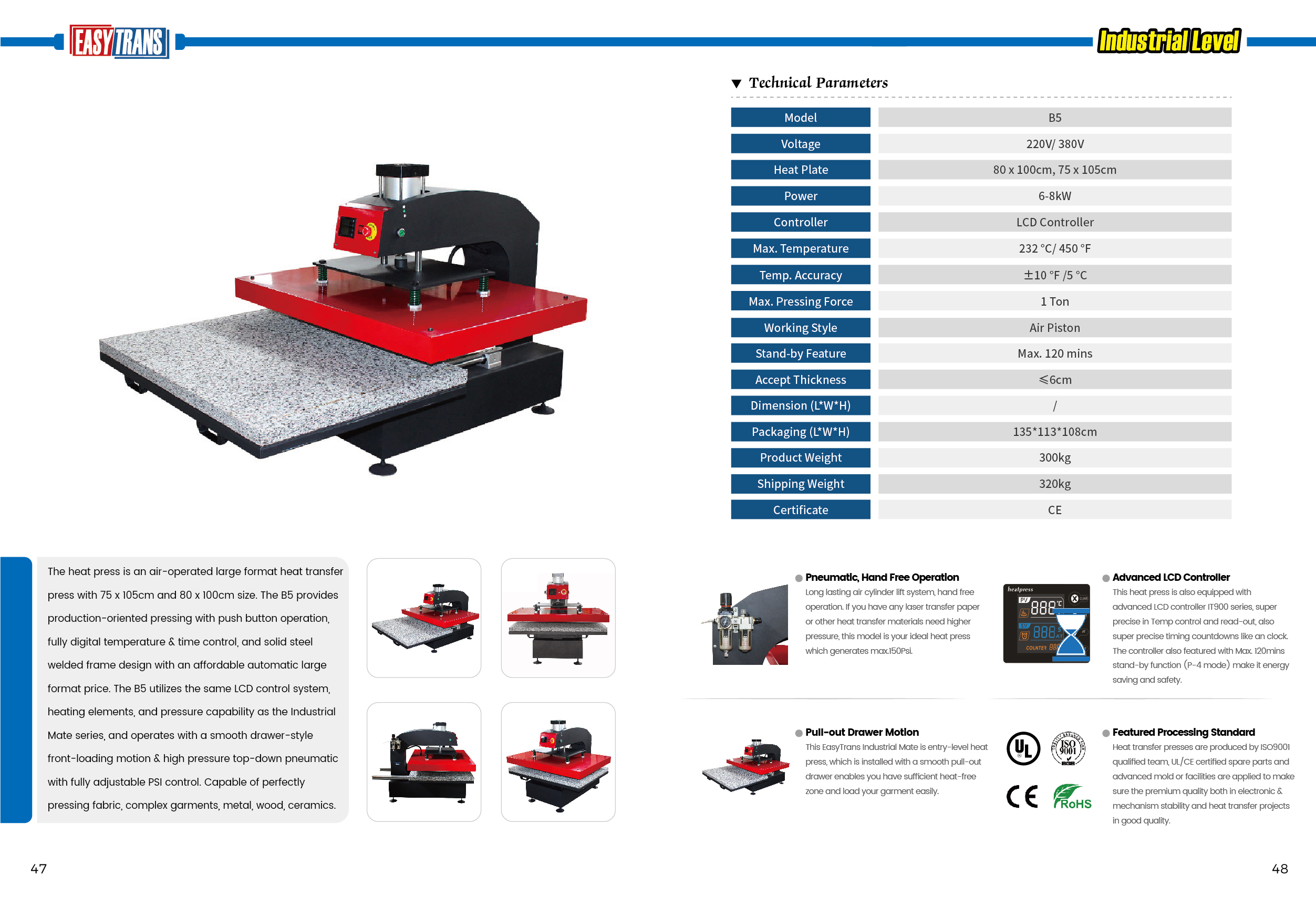

    P.S. Please click Download as PDF to save brochure and read more.

  • Style: Pneumatic Printing Machine
  • Features: Slide-out Base/Auto-open
  • Platen Size: 80 x 100cm, 75 x 105cm
  • Dimension: 53x37x83cm
  • Certificate: CE (EMC, LVD, RoHS)
  • Warranty: 12 Months
  • Description

    Product Tags

    large format heat press


    The B5 utilizes the same LCD control system, heating elements, and pressure capability as the Industrial Mate series, and operates with a smooth drawer-style front-loading motion & high pressure top down pneumatic with fully adjustable PSI control. Capable of perfectly pressing fabric, complex garments, metal, wood, ceramics.

    Additional features

    pneumatic heat press

    Pneumatic, Hand Free Operation

    Long lasting air cylinder lift system, hand free operation. If you have any laser transfer paper or other heat transfer materials need higher pressure, this model is your ideal heat press which generates max.150Psi.

    Pull-out Drawer heat press

    Pull-out Drawer Motion

    This EasyTrans Industrial Mate is entry-level heat press, which is installed with a smooth pull-out drawer enables you have sufficient heat-free zone and load your garment easily.


    Advanced LCD Controller

    This heat press is also equipped with advanced LCD controller IT900 series, super precise in Temp control and read-out, also super precise timing countdowns like an clock. The controller also featured with Max. 120mins stand-by function (P-4 mode) make it energy saving and safety.

    large format heat press

    Large Format Dye Sublimation

    This is large format series heat press with max. available size in 80 x 100cm, and available for both light or thick sublimation products like texitiles, chromaluxe, sublimation, ceramic tiles, mouse pads, MDF boards, etc.

    heat press

    Heating Platen

    Gravity die casting technology made thicker heating platen, helps to keep heating element stay stable when heat makes it expand and cold makes it contract,also called even pressure and heat distribution guaranteed.

    large format heat press hp680 5

    CE/UL Certidied Spare Parts

    Spare parts used on XINHONG heat presses are either CE or UL certified, which ensure heat press remain stable working condition and lower fail rate.


    Heat Press Style: Pneumatic
    Motion Available: Auto-open/ Slide-out Drawer
    Heat Platen Size: 80 x 100cm, 75 x 105cm
    Voltage: 220V/ 380V
    Power: 6000-8000W

    Controller: Screen-touch LCD Panel
    Max. Temperature: 450°F/232°C
    Timer Range: 999 Sec.
    Machine Dimensions: /
    Machine Weight: 300kg
    Shipping Dimensions: 135 x 113 x 108cm
    Shipping Weight: 320kg

    CE/RoHS compliant
    1 Year entire warranty
    Lifetime technical support
